(Voltage Generator Instruction Manual 2/2)

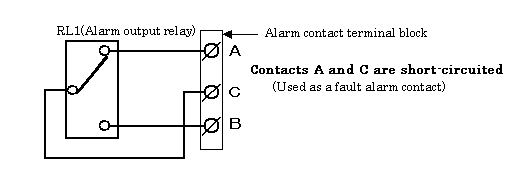

Alarm Circuit

(1) Circuit condition when main circuit is faulty during operation

(2) Circuit condition when the generator's power switch is Off, or when the primary power is not applied to the generator

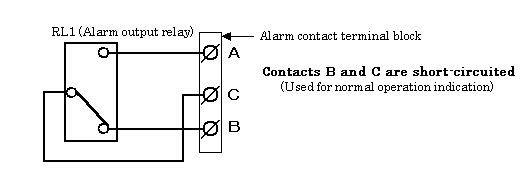

Normal Circuit

The power switch of the generator is turned On and the circuit is in normal operating condition

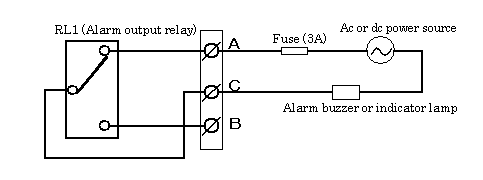

Circuit Example Connected to Fault Alarm
